iTRONIX
for Scooters

Name: iTronix for Scooters
SKU: SPRKTRX-02-SC
Availability: InStock

CDI Ignition Control Unit and Engine Control Unit
for Scooters, Vespa and On-Road Bikes

iTRONIX™ is the family of State-of-the-Art, Smartphone controllable, Ignition and ECU units.

Designed to deliver superior performance, iTRONIX combines versatility, intelligent management, and advanced features that clearly distinguish it from standard or aftermarket control units on the market.

This model is compatible with stock flywheel and pickup ignitions (SIP by Vape, IDM...) and Inner Rotor ignitions (PVL, Selettra, Italkit, ...).

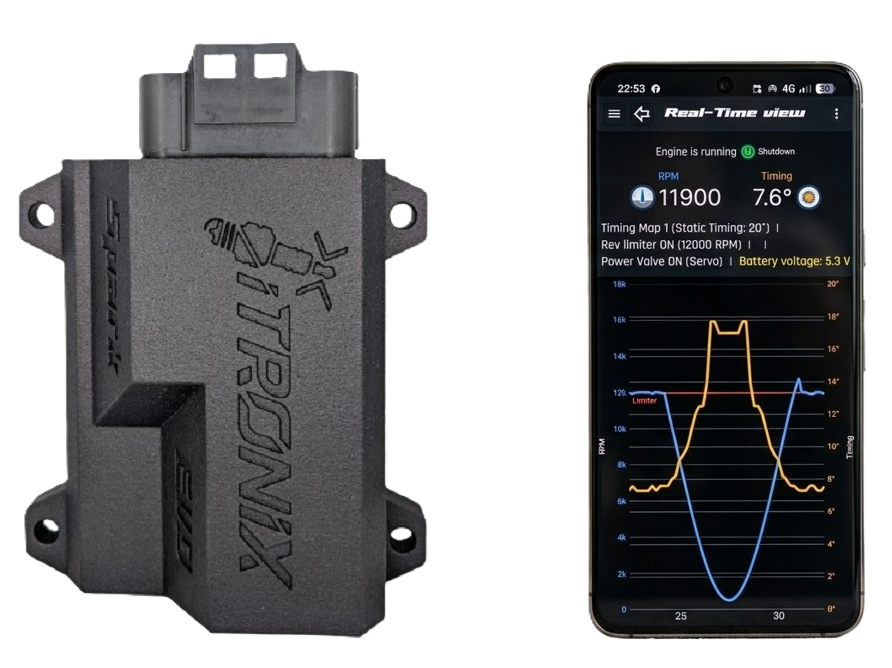

App for total control

iTRONIX integrates an intelligent configuration system to manage every parameter intuitively, thanks to the free iTRONIX by SparkEVO app, available for Windows, macOS, Android, and iOS. Whether you’re working in the workshop or directly in the garage, you can modify and monitor engine operation with maximum flexibility.

Create timing and power valve maps, offline or while the engine is running.
Monitor the engine parameters in real time.
Use the datalogger to record operating and sensors data.
Configure every aspect of the control unit optimized for your engine.

Supported ignitions


PVL 1007 Digital PVL 1419 Analog PVL 1442 Analog PVL 1443 Analog Polini PVL 1042 Digital Polini PVL 1018 Digital (Vespa) Stage6 R/T MK2	Selettra KZ 3200W Analog Selettra SML Selettra NO2019 034-IG-14 Selettra Italkit Selettra P3356E	MHR Team 2	SIP Sport by VAPE IDM (Polini, Malossi, VMC Vespa)	High-voltage stators with pickups (Vespa, Piaggio, Malaguti, Minarelli, …)

DO YOU NEED IT TO BE COMPATIBLE WITH OTHER ENGINES? WRITE TO US!

FEATURES – IGNITION AND ECU VERSIONS

iTRONIX Ignition and ECU Versions

The Ignition version is an advanced electronic ignition control unit that integrates proprietary SparkEVO technologies to optimize engine power and response. Main features:

Works without external battery
Output spark energy: 120 to 132 mJ (with SparkPLUS technology)
Computational performance: MCU 32 bit, real time.
Fully configurable via PC, iOS and Android apps
Minimum engine revs: 500 RPM with fast startup.
Maximum engine revs: 18000 RPM
Ignition Timing maps: 4 customizable. Resolution 0.1° - 100 RPM, interpolated points.
Timing calculation: every RPM change, delay from 1us
Fast response rev limiter
Quick shift input: spark kill mode or timing delay mode
Aux output: RPM signal, shift light
Self Test for unit diagnosis
Upgradable firmware and continuous support

The ECU version extends all the features of the Ignition model, adding complete electronic engine control:

All the features included in Ignition version
Actuators management
- Power Valve: Servo motor, DC motor, Solenoid types. 4 customizable maps (resolution 1% - 100 RPM, interpolated points)
- Power Jet: continuous or PWM
- Water Pump: continuous or PWM

Sensors management

TPS input
Engine temperature: NTC M6 sensor (provided by SparkEVO - link)
Air pressure input
Exhaust gas temperature: K-type thermocouple (provided by SparkEVO - link)
Knocks (detonations) counter (provided by SparkEVO - link)
Advanced Datalogger: records RPM, engine acceleration, sensors values every 100ms

Top Performance Ignition Unit

4 configurable Timing Maps
Rev limiter for each Map
Quick Shift
Statistics
Control via PC
Control via Smartphone
Advanced Datalogger
4 configurable Power Valve maps
Powerjet
Sensor reading

€349

Total control of the electronics ECU

4 configurable Timing Maps
Rev limiter for each Map
Quick Shift
Statistics
Control via PC
Control via Smartphone
Advanced Datalogger
4 configurable Power Valve maps
Powerjet
Sensor reading

€489

Download the user manual

Buy now!

Fill the form to let us configure the perfect iTronix for your bike:

iTronix model

Stator compatibility

Engine rotation direction

Power Valve support

iTronix for Scooters

Additional products

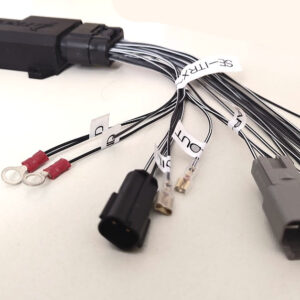

Wiring Service

By default, the cable is included without connectors to the target engine. Choose our Wiring Service to receive a ready-to-use wiring with all the needed connectors for your bike.

iTronix Wiring Service

1 × iTronix Wiring Service

€ 50,00 (including VAT)

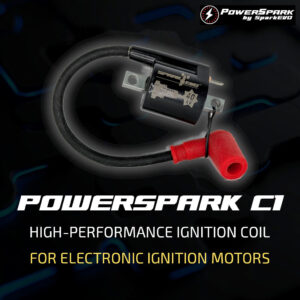

PowerSpark Coil

Choose to add the perfect coil for your iTronix! With a 5% discount!

PowerSpark C1 - Coil for Electronic ignitions

1 × PowerSpark C1 - Coil for Electronic ignitions

Disponibile

(including VAT)

Sensors (only for ECU model)

Engine Temperature Sensor

1 × Engine Temperature Sensor

Disponibile

€ 10,00 (including VAT)

Exhaust gas temperature sensor

1 × Exhaust gas temperature sensor

Disponibile

€ 35,00 (including VAT)

Knock Sensor

1 × Knock Sensor

Disponibile

€ 49,00 (including VAT)

Quantity:

The price will show up after the product is configured

Free shipping on orders over €500

For multiple quantity orders or special needs, please contact us: info@sparkevo.racing
